A Comprehensive Guide: How to Order Bevel Gears

Your Complete Guide to Ordering Bevel Gears

Ordering bevel gears can sometimes be a complex process, but it doesn’t have to be. This guide will walk you through everything you need to know about how to order bevel gears, the unique features of our high-quality bevel gears, the different types of bevel gears, the parameters you need to know when selecting bevel gears, and the manufacturing process for bevel gears.

Our High-Quality Bevel Gears

We take pride in producing high-quality bevel gears. Here are five key features that set our bevel gears apart:

• High precision: Our bevel gears are made with meticulous care, ensuring high precision for optimal performance.
• Superior materials: We use top-tier materials for our bevel gears, guaranteeing durability and longevity.
• Advanced technology: We employ cutting-edge technology in our manufacturing process, ensuring efficiency and consistency.
• Customizable: We offer a wide range of customization options, ensuring that our bevel gears can be tailored to your specific needs.
• Quality assurance: Our bevel gears undergo rigorous quality checks to ensure they meet the highest standards.

Different Types of Bevel Gears

There are several types of bevel gears, each with its own unique features:

Straight Bevel Gear

Straight bevel gears have straight and tapered teeth and are the most common type of bevel gear. They are used in applications where the direction of the drive shaft must be changed.

Spiral Bevel Gear

Spiral bevel gears have curved, oblique teeth. They are typically used in applications that require smooth and quiet operation.

Zerol Bevel Gear

Zerol bevel gears are similar to spiral bevel gears, but with teeth that are curved as in a spiral bevel gear, but they are not angled.

Spiral Zerol Bevel Gear

These are a hybrid of spiral and zerol bevel gears. They offer the advantages of both types, with less noise and vibration.

Selecting the Right Bevel Gears

When choosing bevel gears, it’s important to understand the following parameters:

1. Module: This is the ratio of the pitch diameter to the number of teeth, and it determines the size of the gear teeth.
2. Number of Teeth: This impacts the gear’s speed and torque capabilities.
3. Gear Ratio: This is the ratio of the input speed to the output speed, and it affects the gear’s mechanical advantage.
4. Pitch: This is the distance between corresponding points on adjacent teeth, and it affects the gear’s size and speed.



5. Gear Material: The choice of material affects the gear’s strength and durability.
6. Precision Grade: This determines the accuracy of the gear’s dimensions and affects its performance and lifespan.
7. Load Capacity: This is the maximum load the gear can handle without failure.

Manufacturing Process for Bevel Gears

The manufacturing process for bevel gears involves several key steps:

1. Design and Engineering: This involves creating a blueprint for the gear based on the desired specifications.
2. Material Selection: The right material is chosen based on the gear’s intended application.
3. Cutting and Machining: The gear is cut and shaped using specialized machinery.
4. Heat Treatment: The gear is heated and cooled to harden it and improve its durability.
5. Cleaning and Inspection: The gear is cleaned and inspected to ensure it meets the necessary quality standards.
6. Assembly and Final Inspection: The gear is assembled and given a final inspection before being shipped.

Our Other Gear and Gearbox Products

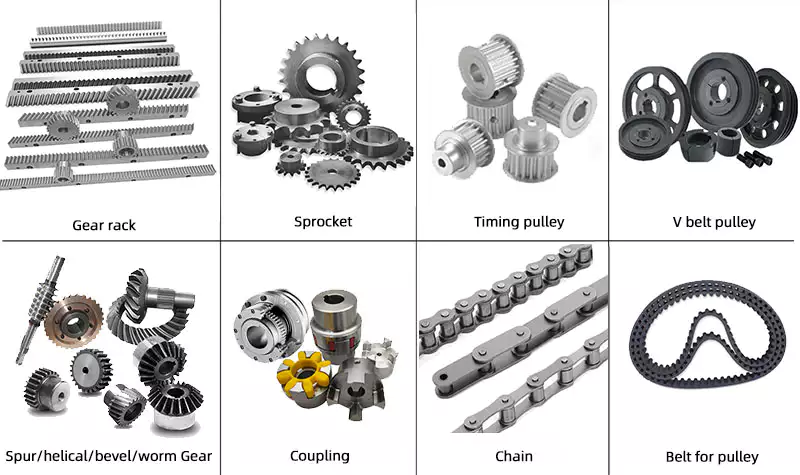

In addition to bevel gears, we also offer a wide range of other gear and gearbox products, including worm gears, helical gears, spur gears, gear racks, worm gearboxes, planetary gearboxes, and helical gearboxes.

About Our Company

We are a leading provider of gears and gearboxes, with advanced production and inspection equipment such as CNC gear grinding machines, gear measuring machines, CNC gear shapers, machine centers, CMMS, and Torque test systems. Our commitment to quality, international certification, and custom services sets us apart in the industry. We look forward to partnering with you for all your gear needs.
